BULL Construction Equipments

BULL SD76 BS5 Super Smart

The all-new High Speed Series backhoe loader from BULL, available through CNL Enterprises for sales, service and spare support in North Karnataka.

BS5 Backhoe Loader 2WD / 4WD Options North Karnataka Dealer

View Product

Dealer Enquiry

Book SD76 Consultation

75HPBS V engine option

40 km/hrMax forward speed

1.1 cu.mGP shovel capacity

8010 kgStandard GP bucket

Contact BULL Dealer Call 6364355589 Email BULL Sales

75HPKirloskar BS V engine option

40Km/hr max forward speed

1.1cu.m GP shovel capacity

8010kg with standard GP bucket

Single Product Focus

SD76 BS5 Super Smart

This page is focused on the BULL SD76 BS5 Super Smart because it is the current BULL product listing for CNL Enterprises.

Performance

Fastest Backhoe Loader In Its Segment

BULL SD76 is promoted as the fastest backhoe loader in the world in its segment, with ultimate driving and operating comfort.

+14%Front bucket capacity

+10%Loading speed

+10%Dozing speed

+6%Road speed

+23%Digging speed up to

+14%Full swing speed up to

+8%Superior backhoe bucket angle

42%Less service cost

Official Highlights

Built For Digging, Loading & Earthmoving

The official SD76 page highlights the BS5 powertrain, Carraro transmission and axles, wet-disc brakes, operator comfort and low-cost maintenance focus.

Kirloskar BS5 engine

Carraro transmission and axles

Rear axle wet disc brakes

Inline FIP for better performance

Bigger filter for better filtration

34,000 Kcal/h cooling system

Higher dumping height with booster bucket

ROPS and FOPS cabin safety

Official Technical Information

SD76 BS5 Super Smart Specifications

Technical data organised from the official BULL SD76 product page.

Engine Options

Kirloskar EngineKirloskar 4R 1190, BS V Diesel Engine, 4760cc

Ashok Leyland EngineAshok Leyland H4 Turbocharged CEV V (BS V)

Cylinders4 / 4

Gross Power75HP (54.8 kW) @ 2200 RPM / 74HP (54.6 kW) @ 2200 RPM

Gross Torque300 Nm @ 1300 RPM / 400 Nm @ 1200 RPM

Transmission, Axles & Brakes

Carraro synchro-shuttle transmission with 4-speed fully synchromesh gearbox, integral torque converter and electrically operated forward and reverse shuttle.
On-the-move gear changes are possible.
SMART HTS option offers open-loop hydrostatic drive.
Rear drive axle is rigidly mounted with Max-trac torque proportioning differential.
Front steer axle is centrally pivoted with oscillation angle of +/-16°.
Service brakes are hydraulically actuated, dual line, self adjusting, compensated oil immersed multi-disc brakes on the rear axle.
Parking brake is hand operated, oil immersed multi-disc on the rear axle.

Loader PerformanceWith Link BracketWithout Link Bracket

Standard bucket capacity1.1 cu.m GP shovel1.1 cu.m GP shovel

I - Dump height2.93 m / 9 ft 7.3 in2.96 m / 9 ft 8.5 in

J - Load over height3.39 m / 11 ft 1.4 in3.39 m / 11 ft 1.4 in

K - Pin height3.61 m / 11 ft 10 in3.61 m / 11 ft 10 in

L - Pin forward reach0.42 m / 1 ft 4.5 in0.42 m / 1 ft 4.5 in

M - Reach at ground1.60 m / 5 ft 2.9 in1.47 m / 4 ft 9.87 in

N - Reach at full height1.42 m / 4 ft 7.9 in1.28 m / 4 ft 2.3 in

O - Reach at full height, bucket dumped1.1 m / 3 ft 7.3 in0.89 m / 2 ft 11 in

P - Below ground level dig depth0.08 m / 3 in0.1 m / 3.9 in

Q - Rollback at ground50°49°

R - Dump angle45°45°

Bucket break-out force8183 kgf8183 kgf

Loader arm break-out force5251 kgf5251 kgf

Payload1800 kgf1800 kgf

Excavator PerformanceStandardExtension Option

Standard bucket capacity0.27 cu.m standard0.27 cu.m standard

A - Maximum dig depth4.6 m / 15 ft 1 in5.60 m / 18 ft 4 in

B - Reach ground level to rear wheel center6.81 m / 22 ft 4 in7.91 m / 25 ft 11 in

C - Reach ground level to slew center5.5 m / 18 ft6.60 m / 21 ft 7 in

D - Reach at full height to slew center2.85 m / 9 ft 3 in3.56 m / 11 ft 8 in

F - Maximum working height5.92 m / 19 ft 5 in6.77 m / 22 ft 2 in

G - Maximum load over height4.14 m / 13 ft 6 in5.02 m / 16 ft 5 in

H - Bucket rotation - power188°188°

Bucket tear-out force6072 kgf6072 kgf

Dipper tear-out force3150 kgf3150 kgf

Lift capacity to bucket pivot at full reach without bucket1400 kg1400 kg

Static DimensionsMetricFt-Inch

A - Overall length6.04 m19 ft 9.82 in

B - Wheelbase2.22 m7 ft 3.39 in

C - King post travel1.03 m3 ft 4.5 in

D - Minimum ground clearance0.48 m1 ft 6.81 in

E - Slew ground clearance0.65 m2 ft 1.6 in

F - Height to top of bonnet1.99 m6 ft 6.34 in

G - Height to top of cabin3.00 m9 ft 10.46 in

H - Overall height3.71 m12 ft 2.1 in

J - Track width - rear1.70 m5 ft 6.92 in

K - Track width - front1.93 m6 ft 3.98 in

L - Width over bucket2.35 m7 ft 8.5 in

M - Side reach to center line of machine6.08 m19 ft 10 in

Steering, Tyres, Speed & Hydraulics

Full power front wheel hydraulic power steering with manual capability if engine or hydraulic power fails.
Working pressure: 1958 psi / 230 bar.
Front tyres: 2WD 9.00 x 16 - 16PR; 4WD 12.5/80 x 18 - 12PR.
Rear tyres: 2WD and 4WD 16.9 x 28 - 12PR standard industrial tyre; 14.00 - 20PR heavy duty tyre option.
Max speed: 40 km/hr forward and 9.3 km/hr reverse.
Hydraulics: load-sensing variable piston pump, 3335 psi / 230 bar, 130 lpm max pump flow.

Electricals, Weight & Service Capacities

Electricals: 150 Ah, 12 volt battery system with alternator and full road lighting.
Weight: 8010 kg with standard GP bucket option.
Hydraulic tank: 115 L system, 100 L service.
Fuel tank: 115 L.
Engine coolant: 17 L system, 15 L service.
Engine oil: 10 L system and service.
Transmission: 19.5 L system, 16 L service.
Rear axle: 17 L system and service; 4WD front axle: 8 L system and service.

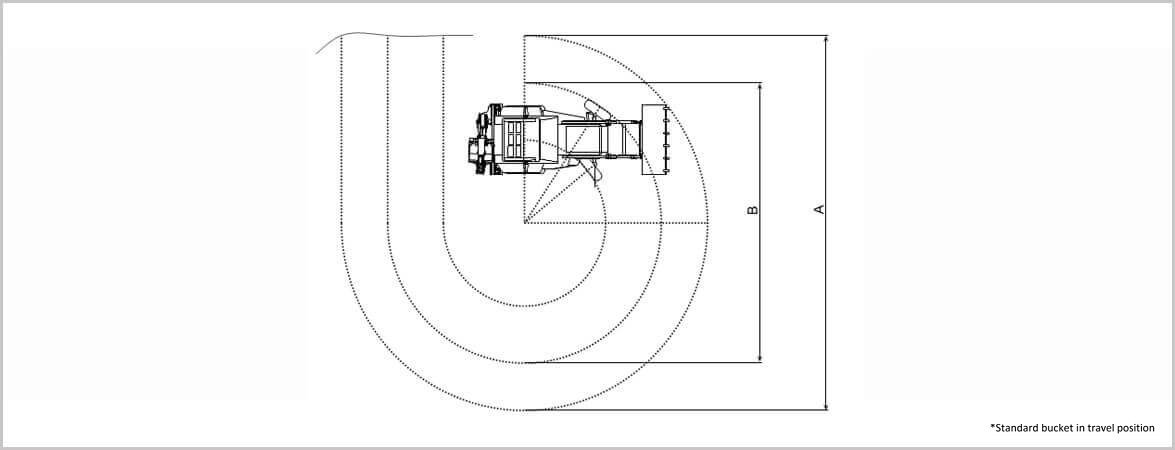

Turning Circle, Cab & Options

Turning circle with inner wheels braked: outside loader bucket 8.8 m; outside wheels 6.3 m.
Turning circle with inner wheels not braked: outside loader bucket 11.6 m; outside wheels 8.9 m.
Cab has front curved glasses, ROPS and FOPS safety, plenty of legroom, adjustable seat, ergonomic controls and soft touch steering wheel.
Cab features include seat belt, large convex rear view mirror, interior light, front screen wiper, front and rear horn, hazard warning system, tool box and helper seat.
Options include excavator buckets, ditch cleaning bucket, taper ditching bucket, square hole bucket, rock breaker, ripper tooth, trench bucket, loader booster bucket, 6 in 1 bucket and 4 wheel drive.

Efficiency, Production & Fuel Consumption

4 BULL machines equal 5 other machines.
BULL output comparison is shown as 100% against 75% for others.
Same application and same time: BULL can load 5 trucks while others can load only 4 trucks.
Same RPM, same fuel and same application: 4 days, 4 weeks or 4 months of BULL work equals 5 days, 5 weeks or 5 months of others' work.

BULL Promise

BULL is ready to prove the productivity claim with a Bull Promise of Rs. 50,000. The sales kit asks: "When can we have the demo? Your own drives in Bull Machines."

Finance Support

BULL has tie-up with 21+ finance partners and promotes easy refinance for used BULL vehicles.

Rapid Service & Spares

Register service complaints with machine serial number for faster service and computerized tracking of on-time service completion.

Service helpline number: 88832 88832.
Download app for Easy Service & Spares.
Search as BULL SERVICE REQUEST on Play Store or scan the QR code.
78+ dealers across India and growing.

Telematics

Live INFOMATIC Monitoring System

Telematics and machine fleet monitoring system features from the BULL sales kit.

Fuel monitoring

Services SMS

Geo fencing

Proactive alert

Locate machine

Schedule maintenance

Service on demand switch

Smart Savings

Value For Money

BULL - 1200 RPM Power+ Mode Rs. 57,521/- Monthly EMI Rs. 92,500/- Monthly fuel spending

Others - Power Rs. 62,500/- Monthly EMI Rs. 1,15,000/- Monthly fuel spending Rs. 2,662/- monthly maintenance cost

Savings by Super Smart Rs. 30,141/- Total monthly savings EMI Rs. 4,979/- + fuel Rs. 22,500/- + maintenance Rs. 2,662/-

Diesel savings / hour at 1200 RPM1 Litre

Monthly running hours250 Hours

Average diesel costRs. 100

Total monthly savingsRs. 30,141/-

5 year diesel savingsRs. 18,08,460/-

5 year interest savings @8% / annumRs. 3,62,154/-

Total saving in 5 yearsRs. 22,00,755/-

The sales kit also states "1 litre / hours = 22+ Lakhs savings" and "Lifetime EMI free" for Super Smart.

Resale Concept Breaker

1 hour 1 litre diesel free for same productivity.
Go by data: calculate with your own data and estimate the savings.
Lowest operating cost.
Resulting to 24 Lakhs savings in 5 years.
APM technology optimizes automatic power management by synergizing engine and hydraulics, resulting in huge diesel saving with highest efficiency.
Super Smart to Super Resale.

World Presence

BULL is shown as conquering the world with presence in 68+ countries.

Operator Safety & Comfort

World's best operator friendly machine safety and comfort claim.
Adjustable steering for effortless operation.
Adjustable backhoe lever height for comfort and fatigue-free operation.
ROPS and FOPS rollover and fall-over protection.
Cabin protects operator from rollover or falling objects.
Optional heavy duty RedDOT (USA) AC with multi directional air flow climatic control.

World Class Parts & Reliability

74 HP Proven Kirloskar Engine with CRDI power fuel efficiency and BULL APM; Kirloskar 159 years of trust.
Walvoil (Italy) Valve, Carlisle Brake (U.S.A), AKG Radiator with SBS Tech.
World famous Carraro (Italy) Synchro-shuttle Transmission and Carraro Axle.
World famous Parker (U.S.A) Pump.
Short blasting, powder coating and world class powder coating plant.
3x longer life with scratch resistance, 3x pin and bushes life, heavy duty steel king post.
Machine will look brighter and younger for longer period, resulting in better resale.

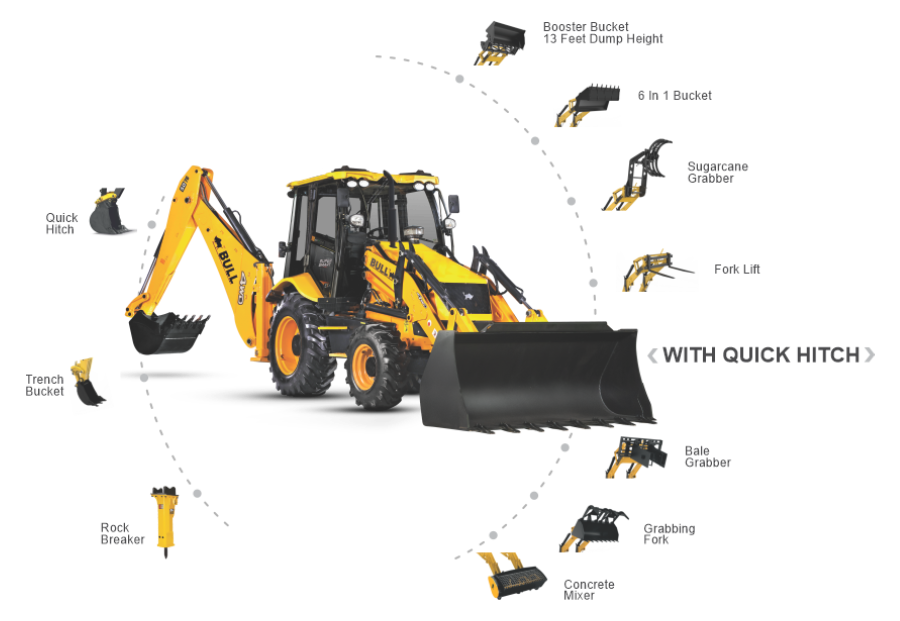

Attachments & Bucket Options

SD76 Attachment Ecosystem

Official SD76 bucket options are shown with downloaded BULL images. Sales-kit attachments without official web images are kept with placeholders for later replacement.
